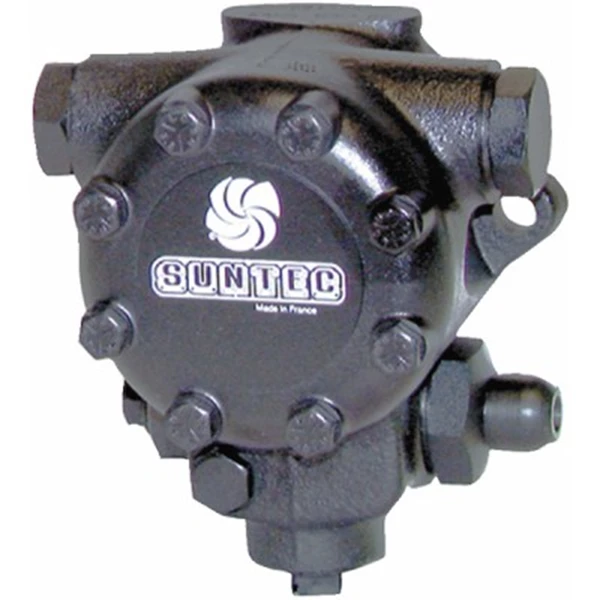

Spesifikasi E6NC 1001 6P SUNTEC PUMP - RIELLO PRESS 3G
Gear Pump
E6 E6NC 1001 6P SUNTEC PUMP - RIELLO PRESS 3G
Standard version
- built-in pressure regulating valve with section function
- essentially the same as model series J, but can also be used for conveying medium and heavy oil
- for oil burners, with solenoid valve in the nozzle line
- nozzle capacity: approx. 100-380 l/h (2850 rpm.-5cSt-10 bar).
- Pressure range: 14-30 bar
- Shaft ø 11 mm according to DIN 24220, (7/16 inch)
Connections:
- Inlet and return: R 1/2 inch
- Nozzle outlet: R 1/4 inch
- Pressure gauge connection: R 1/8 inch
- Vacuum connection: G 1/2 inch
